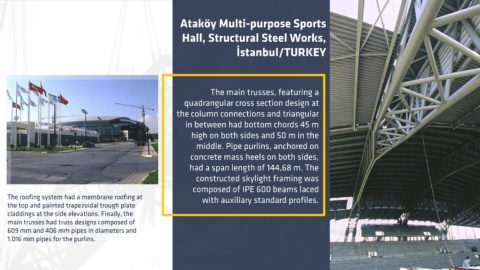

Page 99 - Nurol Construction Company Presentation

Ataköy Multi-purpose Sports

Hall, Structural Steel Works,

İstanbul/TURKEY

The main trusses, featuring a

quadrangular cross section design at

the column connections and triangular
in between had bottom chords 45 m

high on both sides and 50 m in the

middle. Pipe purlins, anchored on
concrete mass heels on both sides,

had a span length of 144,68 m. The

constructed skylight framing was
composed of IPE 600 beams laced
The roofing system had a membrane roofing at with auxiliary standard profiles.

the top and painted trapezoidal trough plate
claddings at the side elevations. Finally, the
main trusses had truss designs composed of
609 mm and 406 mm pipes in diameters and
1.016 mm pipes for the purlins.
